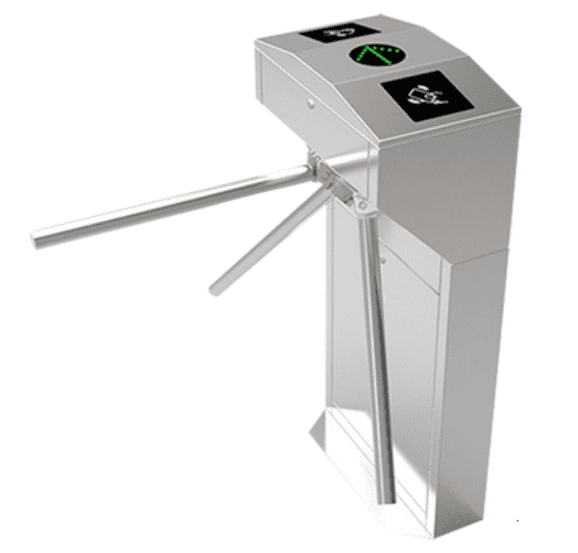

ET-1000

HEAVY DUTY TRIPOD TURNSTILE

Passage width : 520mm ,
Throughput rate : 35 p/m,
Electro – magnetic drive : DC,
Net weight including bar : 44kg.

This product is currently out of stock and unavailable.

SKU: N/A Category:

TECHNICAL SPECIFICATIONS

  • Passage width : 520mm
  • Throughput rate : 35 p/m
  • Power supply : 100 ~ 240V
  • Operational voltage : 24V
  • Max power consumption : 30 W
  • Frequency : 50 ~ 60hz
  • Protection level : IP44
  • Working temperature : -25°C ~ +70°C
  • Electro – magnetic drive : DC
  • Dimension excluding bar (in mm) : (L)480 x (W)280 x (H)980
  • Net weight including bar : 44kg
  • MCBF : 5 Million

FEATURES

  • Semi-Auto mode
  • Pure mechanical mode
  • Single or Bi-directional function in mechanical and electrical versions
  • Automatic reset of barrier arms after each passage
  • Adjustable time out delay

OPERATING MODE

  • Single passage in the set direction
  • Bi-directional passage
  • Free passage in the set direction
  • Always free or locked Materials
  • Housing : SS304
  • Barrier Arms : Stainless steel
  • Lid (Optional) : Stainless steel or artificial stone(black / brown)

SECONDARY CONTROLLER

  • Users : 30000 (RFID)
  • Fingerprint : 3000
  • Transaction storage : 100000
  • Integrated Controller : inbio-260
  • Relay : 12 V relay for lock
  • Support Fire Alarm : Yes

READER

  • RFID : Yes | Fingerprint : Yes
  • Protocol : RS485 / Mifare/Proxy (Optional) : Yes
